ZX7-315S ZX7-400S Welding Machine
Name：Welding Machine
Model：ZX7-315S/ZX7-400S
ZX7-315S
Rated input voltage(V):AC220/380±15%
Frequency(Hz):50/60
Rated input capacity(KVA):26
No-load voltage(V):68
Output current range(A):20-315
Rated output voltage(V):33
Duty cycle(%)：60
Insulation class:B
Suitable for welding thickness(mm)：2.5-5
Weight(kg)：10
Machine size：48*21*38
Package Size：53*27*41
Product Detail
Product Tags

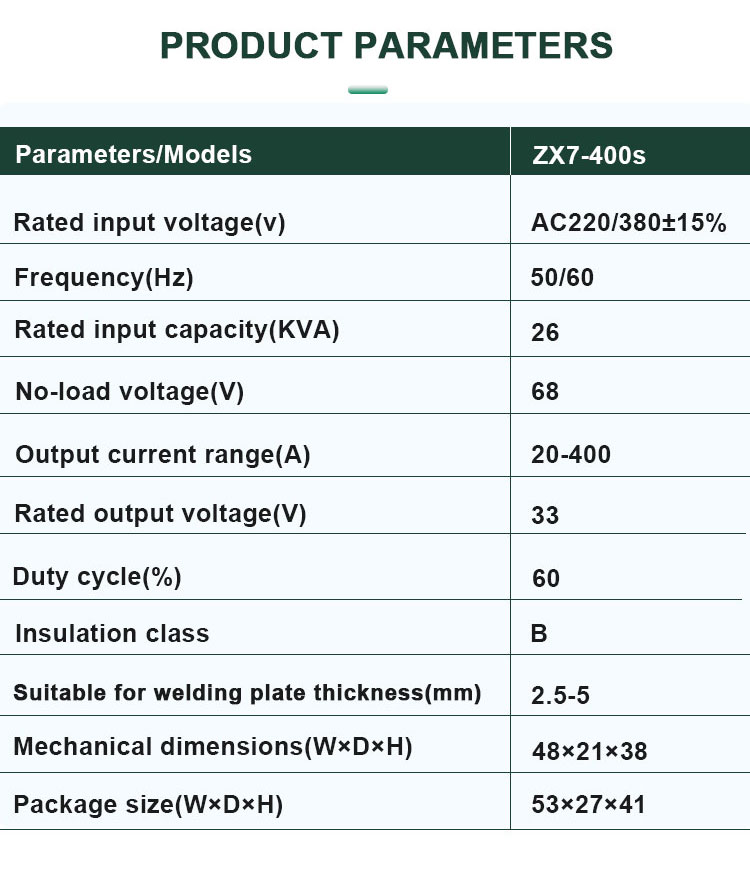

ZX7-400S
Rated input voltage(V):AC220/380±15%
Frequency(Hz):50/60
Rated input capacity(KVA):26
No-load voltage(V):68
Output current range(A):20-400
Rated output voltage(V):33
Duty cycle(%)：60
Insulation class:B
Suitable for welding thickness(mm)：2.5-5
Weight(kg)：12
Machine size：48*21*38
Package Size：53*27*41
Features
1.Using the latest single -tube IGBT inverter technology, fast dynamic response,Output Current is strong;
2.Welding current digital display and preset adjustment,thrust current arbitrarily Adjustment beautiful shape, small spatter;
3.With abnormal voltage, overheating, overload,overcurrent, short circuit fault, protection functions and instructions;
4.Suitable for the high school low carbon steel,cast steel, stainless steel, alloy steel,steel reinforced butt welding and other welding materials.
